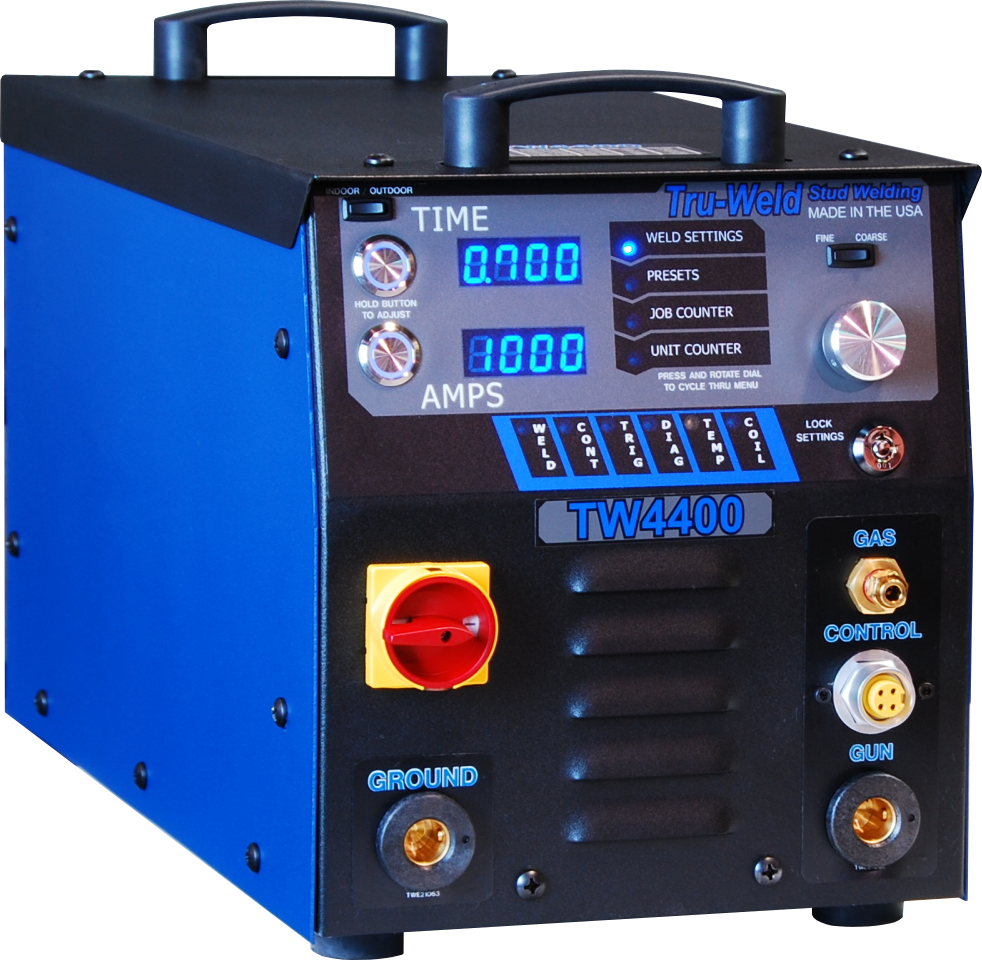

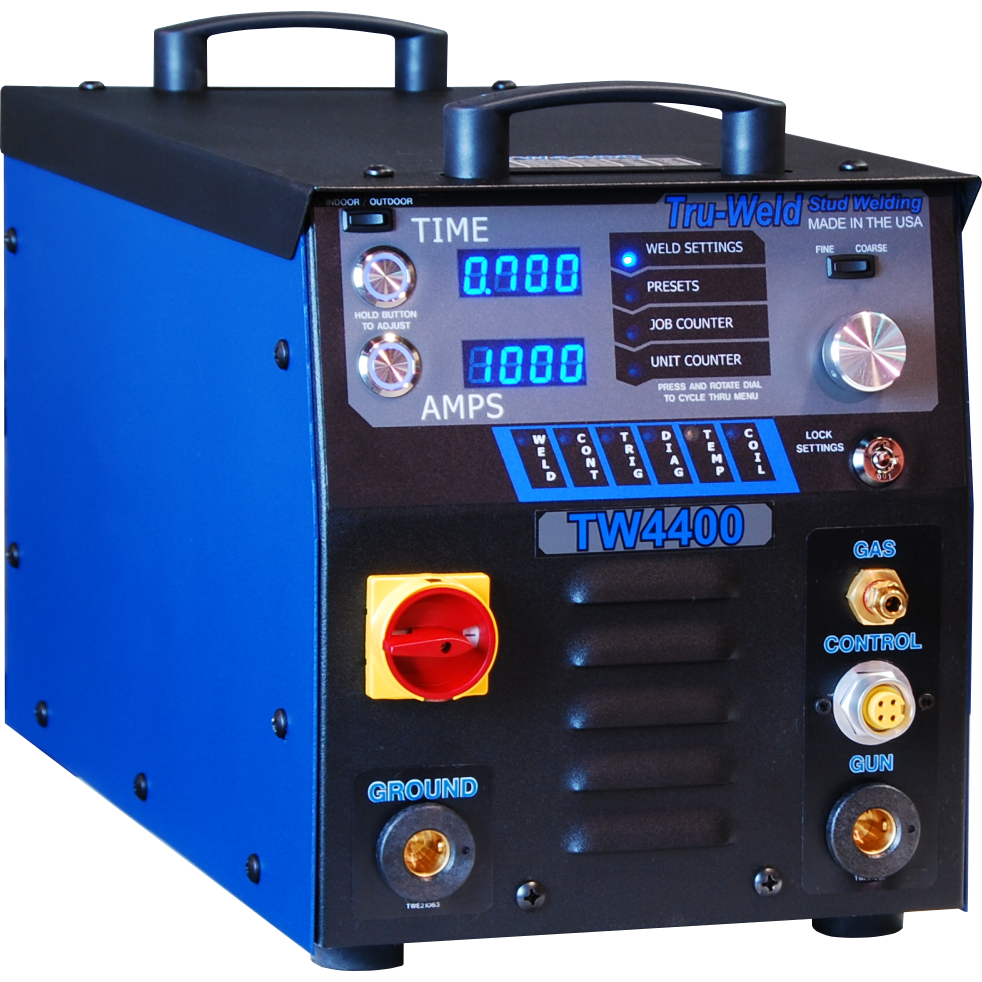

TW4400 Drawn ARC Stud Welder - 5/8" Max Stud Diameter

  • Sale
  • Regular price $10,000.00


  • The TW4400 is a fully integrated stud welding system for ferrule-shielded and gas-shielded drawn arc stud welding processes. The TW4400 contains digital controls for weld time, weld current, and gas purge time. The system was designed to be an ideal fit for shop use, weld up to 5/8″ diameter threaded studs.  This is all contained in a compact, portable package.

    NEW  PRO-TECH’D technology protects the gun circuitry

    NEW  Improved user interface for more intuitive setup

    NEW  Factory presets and user customizable presets

    NEW  Improved weld contro

TW4400 Specifications

  • Size/Dimension:
    Height 12.6” (320mm)
    Width 11” (280mm)
    Length 22.4" (570mm)
  • Weight:
    126 lbs (57 Kg)
  • Weld Range:
    1/8" to 5/8" diameter
  • Duty Cycle:
    1/8” through 1/4" - unlimited
    3/8" - 7 to 8 per minute
    1/2" - 4 to 5 per minute
    5/8" - 2 to 3 per minute
  • Input Voltage:
    230 / 460 VAC 3 Phase 60Hz
  • Fusing Requirement:
    (slow acting) 230/50 Amps
    460/25 Amps
