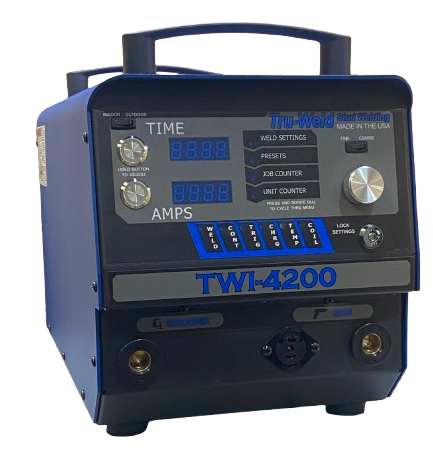

TWi4200 Single Phase Stud Welding System - 3/8" Max Stud Diameter
$8,930.00
Sale price
$8,930.00
Regular price
Shipping calculated at checkout.
The TWi4200 is an inverter-based stud welding system for ferrule-shielded drawn arc stud welding without the need for 3-phase power. The system was designed to be portable for use in remote environments or shops with limited power.
Welding Capability up to 3/8″ diameter full base threaded studs
Inverter-based weld control offers faster response times during welding and improves consistency in challenging applications
Included:
- TWi4200 Power Supply.
- TWEMAG Mini Arc Gun with 25 Feet of #1AWG Combo Cable (on gun) or TWE19000 Light Duty Stud Gun.
- 15 Feet of #1AWG Cable w/Ground Clamp.
Features:
- Safety welding interlock keeps the system from double triggering and saves on chuck wear.
- Factory and user-customizable presets.
- Resettable job counter and lifetime counter.
- Supervisor settings lock.
- Removable power cord.
*While we await the arrival of the TWEMAG Mini Arc Gun, all TWI4200 units will be shipping with a TWE19000 Light Duty Arc Gun*
TWi4200 comes with a 2-year manufacturer's warranty and a 90-day manufacturer's warranty on the stud gun. For more information, click here.
