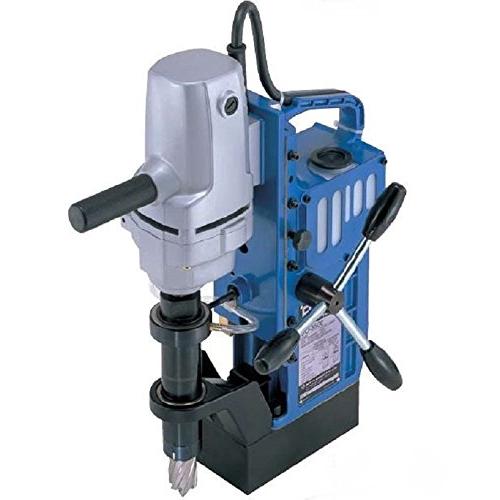

UO-3500 - 1 3/8" x 2" hole capacity

Especially designed for H.S.S. cutters

Side-lock version (UO-3500-02) available

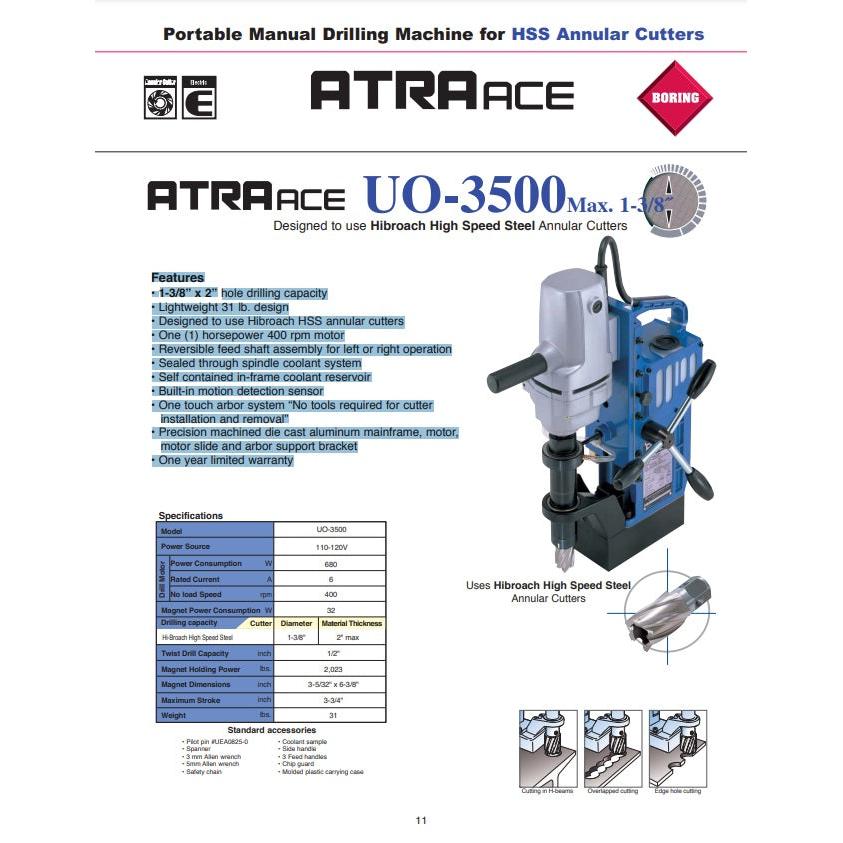

Spec Sheet and Brochure

Features
• 1-3/8” x 2” hole drilling capacity
• Lightweight 31 lb. design
• Designed to use Hibroach HSS annular cutters
• One (1) horsepower 400 rpm motor
• Reversible feed shaft assembly for left or right operation
• Sealed through spindle coolant system
• Self contained in-frame coolant reservoir
• Built-in motion detection sensor
• One touch arbor system “No tools required for cutter
installation and removal”
• Precision machined die cast aluminum mainframe, motor,
motor slide and arbor support bracket
• One year limited warranty
